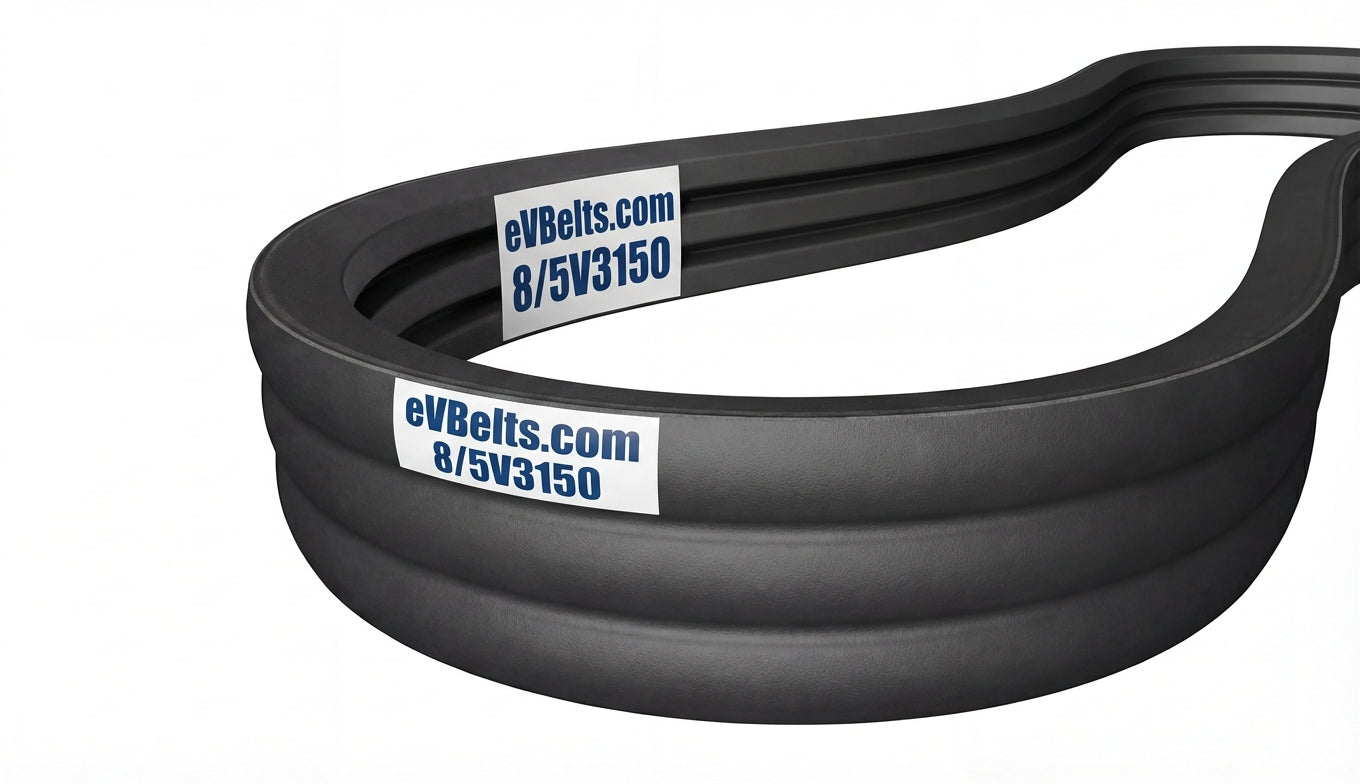

8/5V3150

Top Width: 5.21" (132.33mm)
Outside Length: 315.6" (8016.2mm)
Inside Length: 314" (7975.6mm)
Min Pulley Diameter: 7.1"
Configuration: 8-Band Set

The 8/5V3150 is a factory-joined 8-band 5V banded belt assembly measuring 5.21" wide x 315.6" long, featuring oil and heat resistant rubber construction.

SKU: 1224767

$962.94

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	8/5V3150
Top Width	5.21 in / 132.33 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	314.0 in / 7975.6 mm
Outside Length	315.6 in / 8016.2 mm
Effective Length	315.0 in
Min Sheave Diameter	7.1 in / 180.3 mm
Ribs	8
