8/5V1210

Top Width: 5.21" (132.33mm)
Outside Length: 121.6" (3088.6mm)
Inside Length: 120" (3048mm)
Min Pulley Diameter: 7.1"
Configuration: 8-Band Set

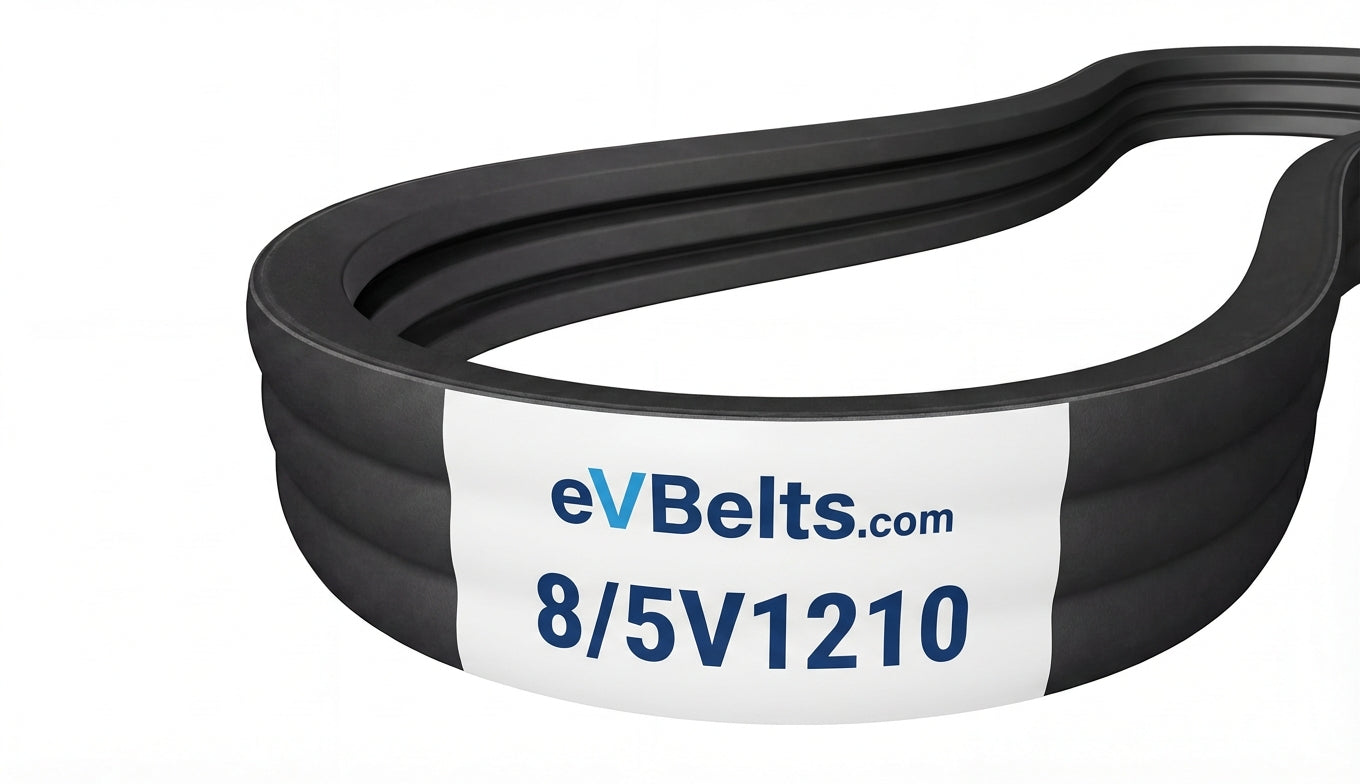

The 8/5V1210 is a factory-joined 8-band 5V banded belt assembly measuring 5.21" wide x 121.6" long, featuring oil and heat resistant rubber construction.

SKU: 1224750

$422.63

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	8/5V1210
Top Width	5.21 in / 132.33 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	120.0 in / 3048.0 mm
Outside Length	121.6 in / 3088.6 mm
Effective Length	121.0 in
Min Sheave Diameter	7.1 in / 180.3 mm
Ribs	8
