8/5V1180

Top Width: 5.21" (132.33mm)
Outside Length: 118.6" (3012.4mm)
Inside Length: 117" (2971.8mm)
Min Pulley Diameter: 7.1"
Configuration: 8-Band Set

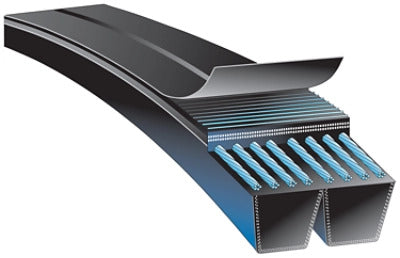

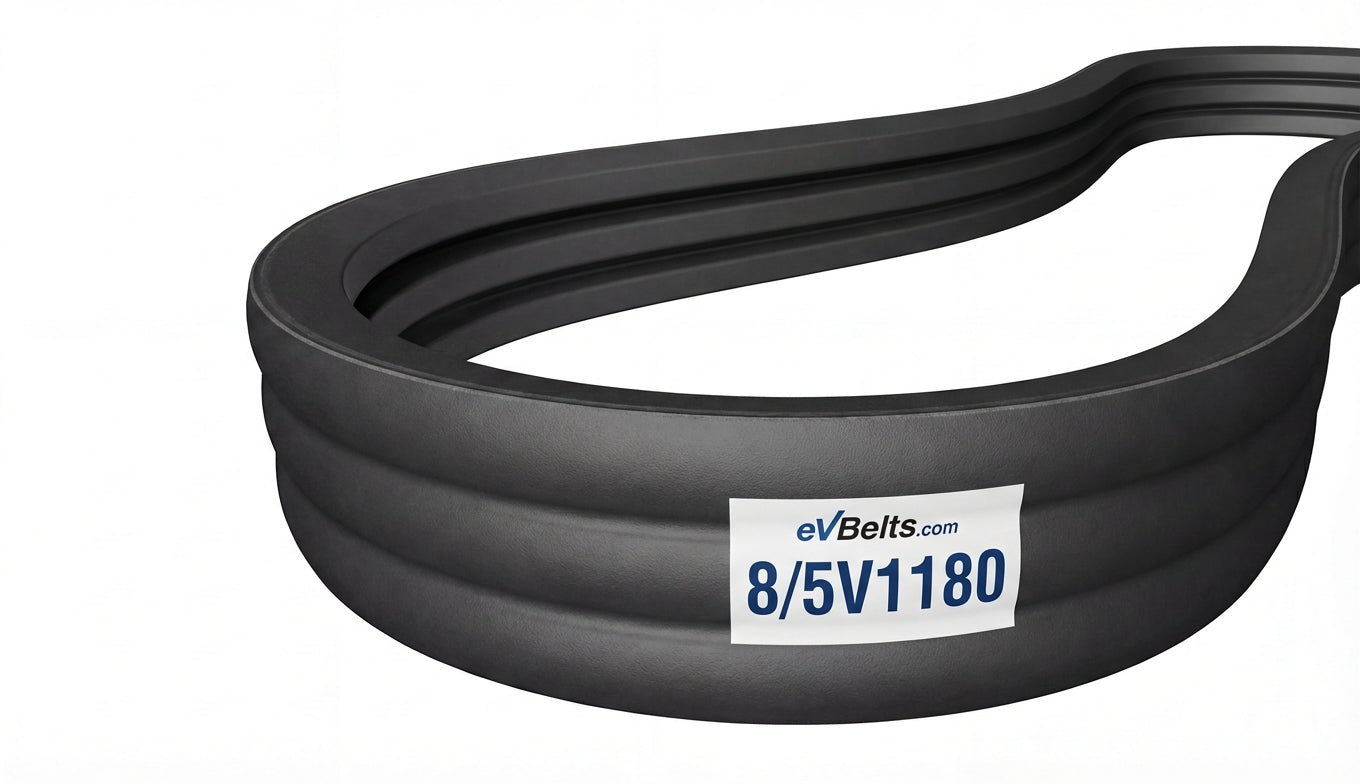

The 8/5V1180 is a factory-joined 8-band 5V banded belt assembly measuring 5.21" wide x 118.6" long, featuring oil and heat resistant rubber construction.

SKU: 1224748

$304.54

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	8/5V1180
Top Width	5.21 in / 132.33 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	117.0 in / 2971.8 mm
Outside Length	118.6 in / 3012.4 mm
Effective Length	118.0 in
Min Sheave Diameter	7.1 in / 180.3 mm
Ribs	8
