7/5V3150

Top Width: 4.555" (115.7mm)
Outside Length: 315.6" (8016.2mm)
Inside Length: 314" (7975.6mm)
Min Pulley Diameter: 7.1"
Configuration: 7-Band Set

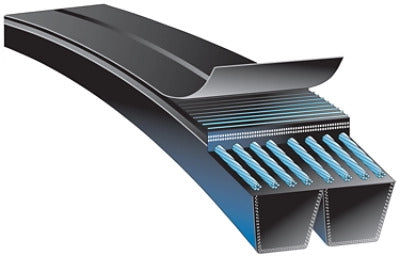

The 7/5V3150 is a factory-joined 7-band 5V banded belt assembly measuring 4.555" wide x 315.6" long, featuring oil and heat resistant rubber construction.

SKU: 1224730

$842.57

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	7/5V3150
Top Width	4.555 in / 115.7 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	314.0 in / 7975.6 mm
Outside Length	315.6 in / 8016.2 mm
Effective Length	315.0 in
Min Sheave Diameter	7.1 in / 180.3 mm
Ribs	7
