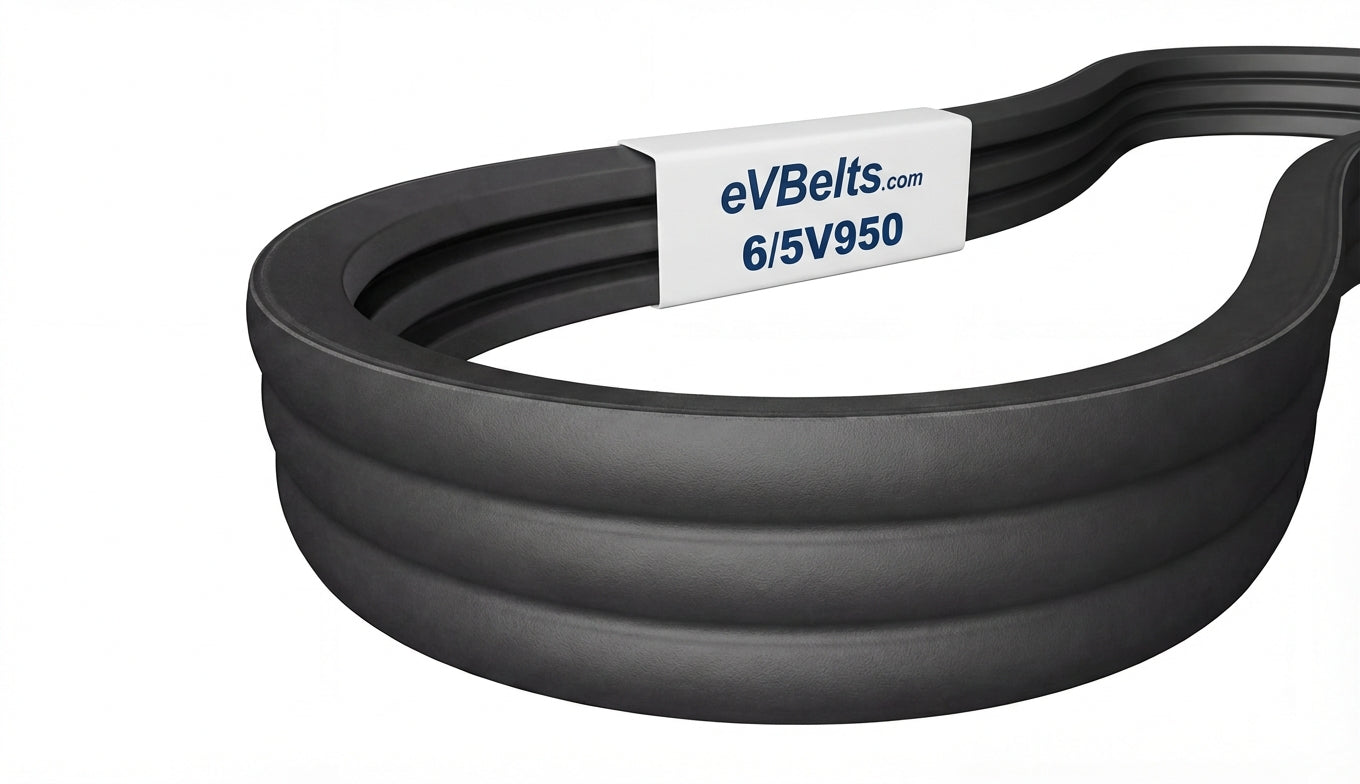

6/5V950

Top Width: 3.9" (99.06mm)
Outside Length: 95.6" (2428.2mm)
Inside Length: 94" (2387.6mm)
Min Pulley Diameter: 7.1"
Configuration: 6-Band Set

The 6/5V950 is a factory-joined 6-band 5V banded belt assembly measuring 3.9" wide x 95.6" long, featuring oil and heat resistant rubber construction.

SKU: 1224670

$214.67

Only 1 Left!

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	6/5V950
Top Width	3.9 in / 99.06 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	94.0 in / 2387.6 mm
Outside Length	95.6 in / 2428.2 mm
Effective Length	95.0 in
Min Sheave Diameter	7.1 in / 180.3 mm
Ribs	6
