6/5V1120

Top Width: 3.9" (99.06mm)
Outside Length: 112.6" (2860mm)
Inside Length: 111" (2819.4mm)
Min Pulley Diameter: 7.1"
Configuration: 6-Band Set

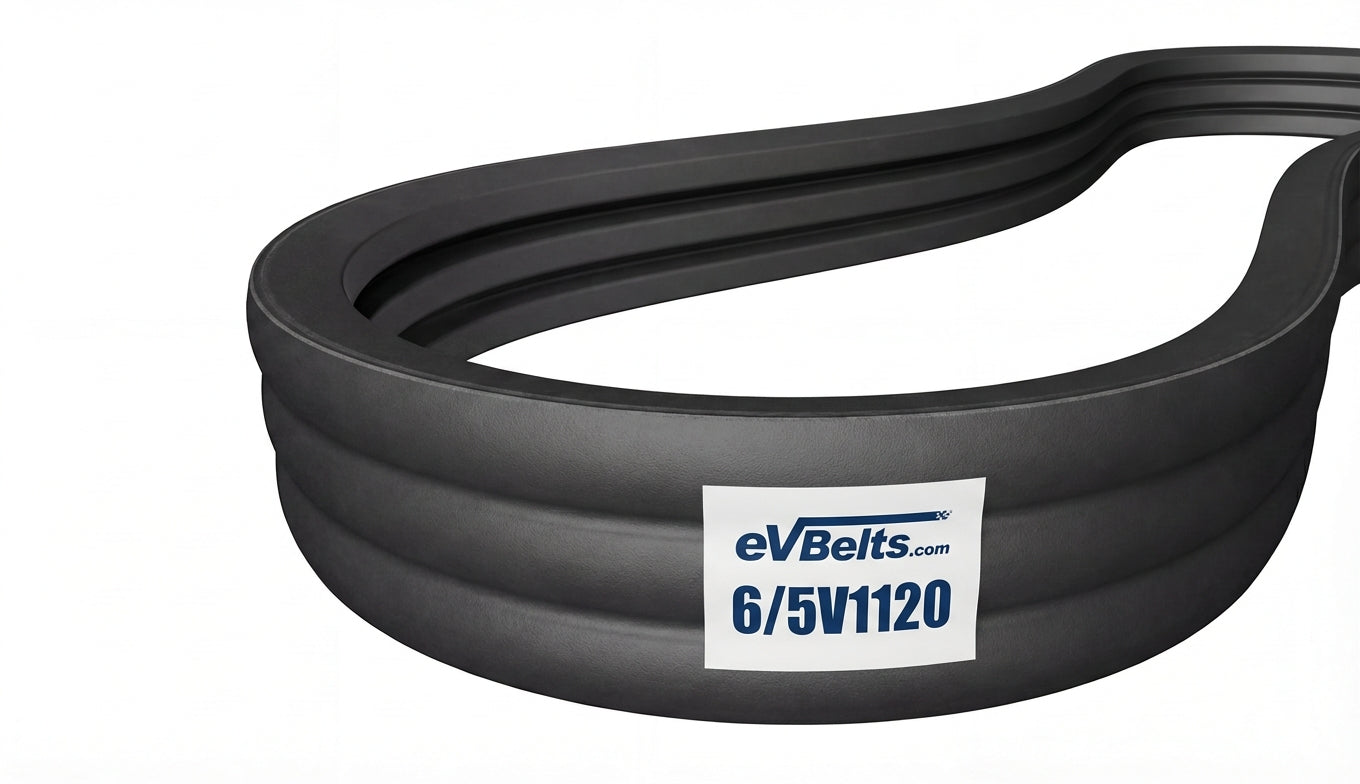

The 6/5V1120 is a factory-joined 6-band 5V banded belt assembly measuring 3.9" wide x 112.6" long, featuring oil and heat resistant rubber construction.

SKU: 1224673

$216.62

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	6/5V1120
Top Width	3.9 in / 99.06 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	111.0 in / 2819.4 mm
Outside Length	112.6 in / 2860.0 mm
Effective Length	112.0 in
Min Sheave Diameter	7.1 in / 180.3 mm
Ribs	6
