5/5V1060

Top Width: 3.245" (82.42mm)
Outside Length: 106.6" (2707.6mm)
Inside Length: 105" (2667mm)
Min Pulley Diameter: 7.1"
Configuration: 5-Band Set

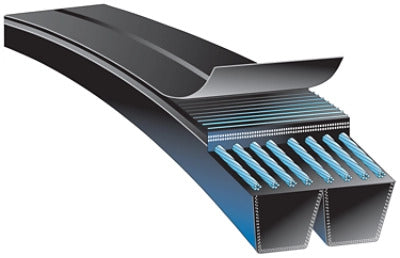

The 5/5V1060 is a factory-joined 5-band 5V banded belt assembly measuring 3.245" wide x 106.6" long, featuring oil and heat resistant rubber construction.

SKU: 1224635

$162.58

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	5/5V1060
Top Width	3.245 in / 82.42 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	105.0 in / 2667.0 mm
Outside Length	106.6 in / 2707.6 mm
Effective Length	106.0 in
Min Sheave Diameter	7.1 in / 180.3 mm
Ribs	5
