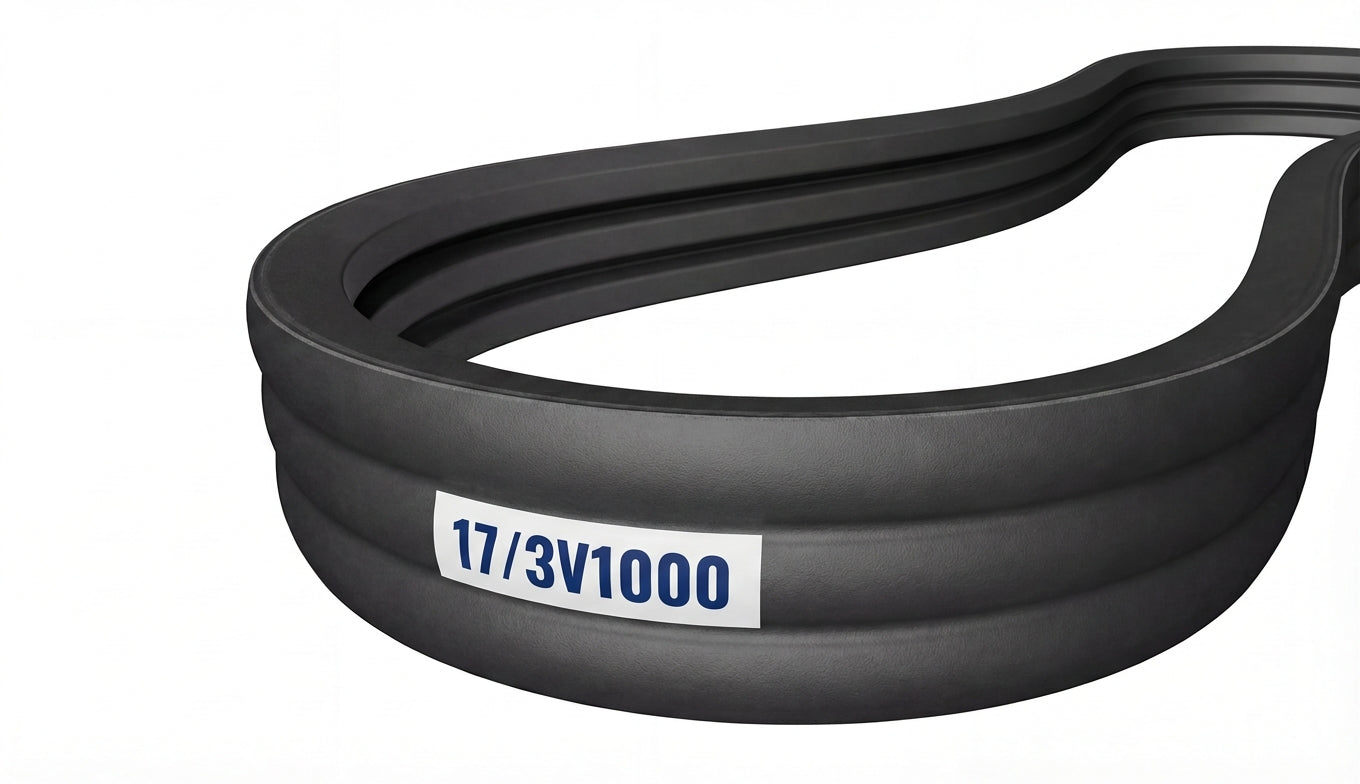

17/3V1000

Top Width: 6.855" (174.12mm)
Outside Length: 100.3" (2547.6mm)
Inside Length: 99.5" (2527.3mm)
Min Pulley Diameter: 2.65"
Configuration: 17-Band Set

The 17/3V1000 is a factory-joined 17-band 3V banded belt assembly measuring 6.855" wide x 100.3" long, featuring oil and heat resistant rubber construction.

SKU: 1223717

$318.16

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	17/3V1000
Top Width	6.855 in / 174.12 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	99.5 in / 2527.3 mm
Outside Length	100.3 in / 2547.6 mm
Effective Length	100.0 in
Min Sheave Diameter	2.65 in / 67.3 mm
Ribs	17
